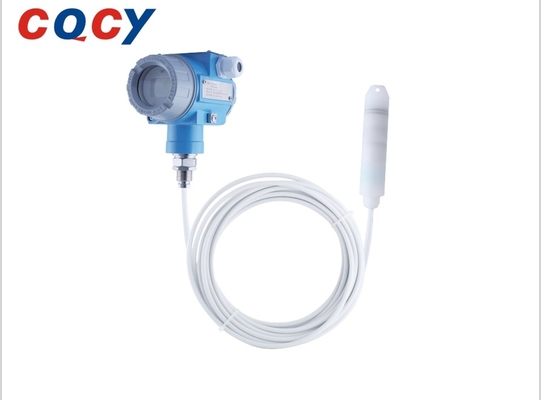

CYW71C Anti-corrosion type input Liquid level transmitter (Measurement of a corrosive liquid/4~20mA, hart, RS485
| Tempat asal | Shanghai, Cina |
|---|---|
| Nama merek | CQCY |
| Sertifikasi | CCS/ 3A/ TUV-SII2/3 / IEC Ex/ATEX/CE/NEPSI |
| Nomor model | CYW71C Jenis anti korosi masukan pemancar level cairan |
| Kuantitas min Order | 1set |
| Harga | USD+50 dollars to 1000 dollars+1set |
| Kemasan rincian | Pengemasan Karton |
| Delivery Time | 10-30 work days |
| Syarat-syarat pembayaran | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Menyediakan kemampuan | 3000+1set+per hari |
Hubungi saya untuk sampel gratis dan kupon.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xDetail produk
| 1.Jangkauan | 0~20~200kPa | 2.Out put | 4~20mA、4~20mA HART、RS485 |
|---|---|---|---|
| 3.Power supply | 9~28VDC、13~28VDC、15~28VDC、15~24VDC | 4.Accuracy | 0.5%FS |
| 5.Measurement medium | Fluid compatible with the contact material | 6.Medium temperature | -40~60℃ |
| 7.Explosion-proof type | Burst proof Ex db IIC T6 Gb blow proof dust Ex tb IIIC T80℃ Db intrinsically safe Ex ia IC T6 Ga (only 4 ~ 20 mA output) dust intrinsically safe Ex iaD 20 T80℃ (only 4 ~ 20 mA output only) Note: intrinsically safe must be supplied through the safety grid o | 8.Stability energy | Si 0.2% FS / year |
| Menyoroti | Transmitter tingkat cairan RS485,4 ~ 20mA Transmitter tingkat cairan,Hart Transmitter tingkat cairan |
||
Deskripsi Produk
CYW71C Series of liquid level transmitter products use the 0EM pressure sensor with ceramic piezoresistivity as the signal measurement element, and through the computer automatic test, using the laser resistance control process for the wide temperature range of zero and sensitivity temperature compensation. The probe shell is made of PVDF anti-corrosion material, the sealing ring is made of fluorine glue, and the transmission cable is made of tetrafluoride material, which has excellent anti-corrosion performance.
